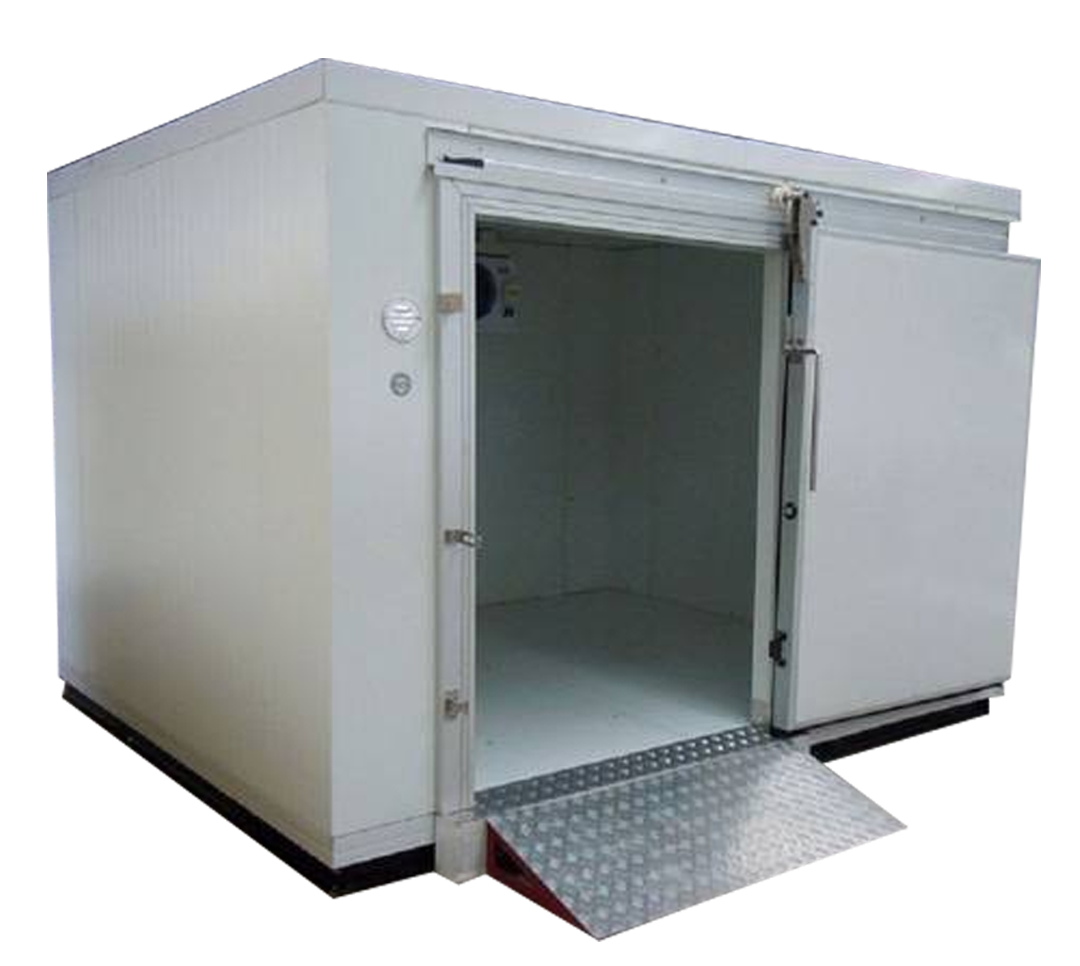

Cold Room (8* 8*20ft)

Cold Room (8* 8*20ft) Cold Room has the indigenous capacity to design, fabricate, and manufacture quality morgue/postmortem Cold Storage Rooms, Refrigerated Chill Cabinets, Body Storage Trays, adjustable racking and Stub Roller Systems, and other postmortem process equipment. We provide an end-to-end solution for Cold Room Business Plan; taking your project from design through to manufacturing, supply, and installation in your facility. It comes in a variety of model designs, sizes, and specifications according to each client’s project requirements for the Cold Room Business Plan. Coldroom Construction The room panel will be constructed from foamed-in-place urethane-insulated modular panels that provide high-density rigid insulation. These modular panels are typically 4″ thick (R34) but can also be supplied in 5″ (R42) and 6″(R56) thickness. The urethane-to-metal bond with vinyl gaskets to flanges at an angle of 90 will provide an airtight seal as well as tremendous strength. The insulated panels will be UL-Fire Test Approved and will have a low frame spread rating of 25 or less. We use Italian panel and Swing Door and 304 Grade (18 gauge) stainless steel in morgue fabrication projects. Conditioning Equipment Usually, we mount the Cooling System on the roof of the most constructed morgue. Our Condensing Unit is made up of the condenser (copper), liquid receiver, vibration spring/absorber, lock up valve, solenoid valve and Copeland or Bitzer compressor (Made in Germany), R404 Refrigerant, R22 gases while our evaporator consists of the evaporation coil, heater and evaporation valve with equalizer. Condensing Unit components: Compressor (Bitzer or Copeland) Condenser coil (Copper) Double fan for heat extraction Liquid receiver Oil separator Low & high-pressure switch Drier/Filter Vibration absorber Solenoid valve Sight glass Evaporator components: Copper Evaporator coil Aluminium casein Double fan Expansion valve Heater Control Panel Our cold room control panel is equipped with the following: Phase failure/monitor device Overload protector Contactors Digital Thermometer Thermostat Defrost timer Delay timer Selector switch Pilot Light Other Details: Coldroom Power Capacity: 380-415 volts ( 3phase) Body Colour: White/Off-white Door Type: Swing Flooring: Fully insulated floor structure reinforces with WPB plywood/Tiles/Checkered plate   S/N SIZE ( FT) L x B x H GENERATOR CAPACITY (KVA) HORSEPOWER TONNES 1. 8 * 8 * 8 ft Cold room 10KVA 3 HP 5 Tonnes  2. 10 * 8 * 8 ft Cold room 10KVA 3 HP 6 Tonnes  3. 16 * 8 * 8 ft Cold room 12.5 KVA 4 HP 10 Tonnes  4. 20 * 8 * 8 ft Cold room 12.5 KVA 5 HP 12 Tonnes 5. 20 * 10 * 8 ft Cold room 12.5 KVA 5 HP 15 Tonnes 6. 25 * 10 * 8 ft Cold room 18 KVA 8 HP 20 Tonnes 7. 28 * 12 * 8 ft Cold room 20KVA 10 HP 25 Tonnes 8. 20 * 20 * 8 ft Cold room 30KVA 12.5 HP 30 Tonnes 9. 32 * 16 * 8 ft Cold room 40KVA 15 HP 40 tonnes 10. 26 * 20 * 10 ft Cold room 40KVA 15 HP 50 Tonnes 11. 35 * 20 * 10 ft Cold room 55KVA 20 HP 70 Tonnes 12. 54 * 20 * 10 ft Cold room 80KVA 30 HP 100 Tonnes 13. 64 * 20 * 12 ft Cold room 100KVA 45 HP 150 Tonnes 14. 42 * 40 * 12 ft Cold room 150KVA 60 HP 200 Tonnes 15. 80 * 40 * 16 ft Cold room N/S Depends on Design 500 Tonnes   FAQ [saswp_tiny_multiple_faq headline-0=”h3″ question-0=”What is the energy consumption of the 8x8x20ft cold room?” answer-0=”Our cold rooms are designed with energy efficiency in mind, utilizing advanced insulation and refrigeration systems to minimize power usage.” image-0=”” count=”1″ html=”true”][saswp_tiny_multiple_faq headline-0=”h3″ question-0=”Can the temperature settings be adjusted?” answer-0=”Yes, the cold room features customizable temperature controls to cater to various storage needs, from chilling to freezing.” image-0=”” count=”1″ html=”true”][saswp_tiny_multiple_faq headline-0=”h3″ question-0=”Is installation support provided?” answer-0=”Absolutely, HTSFarms offers comprehensive installation services and ongoing technical support to ensure optimal performance.” image-0=”” count=”1″ html=”true”][saswp_tiny_multiple_faq headline-0=”h3″ question-0=”How does this cold room compare to others in the Nigerian market?” answer-0=”Our 8x8x20ft cold room stands out due to its spacious design, energy efficiency, and durability, tailored specifically for Nigeria’s unique environmental conditions.” image-0=”” count=”1″ html=”true”][saswp_tiny_multiple_faq headline-0=”h3″ question-0=”What maintenance is required?” answer-0=”Regular maintenance includes cleaning the interior and exterior surfaces, checking the refrigeration system, and ensuring the door seals are intact. HTSFarms provides detailed maintenance guidelines and services.” image-0=”” count=”1″ html=”true”]
