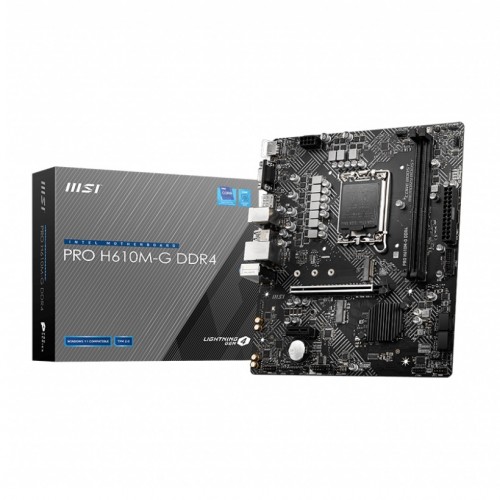

MSI PRO H610M-G DDR4 Micro-ATX Motherboard

Specification Basic Information Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700 Chipset Intel H610 Chipset Form Factor mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) Memory Type DDR4 Slots 2x DDR4 memory slots Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory Support up to 64GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Connector & Ports HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort VGA (s) 1x VGA port USB (s) Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) LAN Port (s) 1x Intel I219V 1Gbps LAN controller Supported Storage 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors Internal I/O Ports POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years
