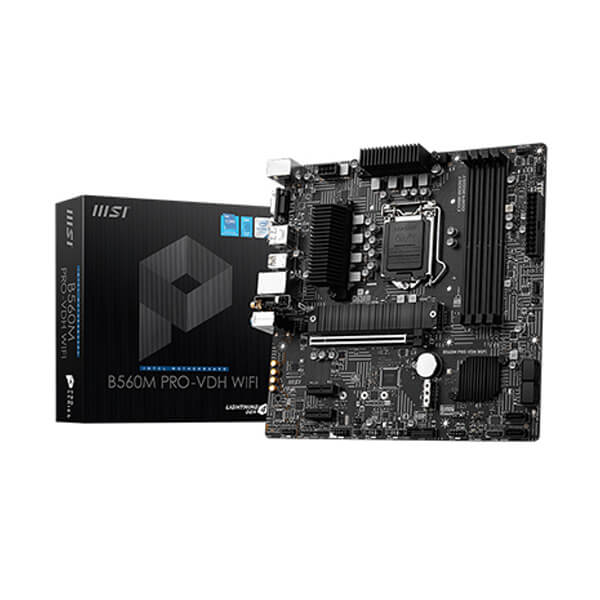

MSI B560M PRO-VDH WIFI 10TH AND 11TH GEN MICRO ATX MOTHERBOARD

SPECIFICATION MOTHERBOARD Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA 1200 Chipset Intel B560 chipset Memory 4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 4000 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Graphics x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports the maximum resolutions of 2048×1536 @50Hz, 2048×1280 @60Hz and 1920×1200 @60Hz Slots PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset) Supported Storage 6x SATA 6Gb/s ports (From B560 chipset) 2x M.2 slot (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot2 (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors LAN Realtek 8125B 2.5Gbps LAN controller Audio Realtek AL897 Codec 7.1-Channel High Definition Audio USB Port Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector External I/O Ports eyboard / Mouse VGA DisplayPort USB 3.2 Gen 2 10Gbps Type-A LAN port WiFi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A WiFi Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA Form Factor Miro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) BIOS 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Warranty 03 Years DESCRIPTION MSI B560M PRO VDH WIFI Motherboard in Bangladesh  The MSI B560M PRO-VDH WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed, and other expandable connectors are able to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive thanks to controlling additional RGB strips and other RGB peripherals added to a system, without having a separate RGB controller. Optimized Cooling  MSI B560M PRO VDH WIFI Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. MSI B560M PRO VDH WIFI Motherboard Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface.MSI B560M PRO VDH WIFI Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed. Performance MSI OC LAB doesn’t merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI B560M PRO VDH WIFI Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability. Armor Design MSI B560M PRO VDH WIFI  Motherboards support all the newest storage standards, which allows users to attach any ultra-fast memory device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature the latest Lightning Gen 4 M.2 which is that the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. MSI B560M PRO VDH WIFI  Motherboard PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane storage device. Audio Boost MSI B560M PRO VDH WIFI Motherboard Make sure you enjoy the purest sound quality in both stereo and surround sound. A hi-fi sound experience with exceptional acoustics and realism for studio-level headphones is ensured, because of top-quality audio capacitors. Using MSI B560M PRO VDH WIFI Motherboard separated layers within the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds once you plug/unplug devices or turn your PC on/off.
