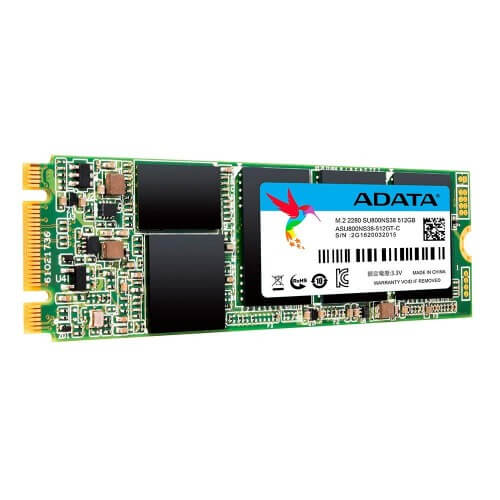

SPECIFICATION SSD Form Factor M.2 2280 Interface Type SATA 6Gb/s MTBF 2,000,000 hours Internal or External Internal Capacity(GB) 512GB Warranty 3 Years Intelligent SLC Caching and DRAM Cache Buffer The intelligent SLC Caching algorithm allows NAND Flash memory to operate in single-level cell mode and boosts read/write performance. In addition, with support for DRAM Cache Buffer, read/write performance can be as much as double that of solid-state drives that lack a DRAM cache, or in other words that can’t use auxiliary memory as an SSD buffer for high-intensity tasks. Advanced LDPC ECC Engine Low-density parity-check error correcting code has been implemented on the SU800 M.2 2280, leading to a massive reduction in data errors and an equal increase in data integrity. It, therefore, protects your valuable content against corruption to a much greater extent than non-ECC SSDs or even SSDs that use basic BCH error correction. ADATA SU 800S 512GB Capacity 512GB Form Factor M.2 2280 NAND Flash 3D TLC Controller SMI Dimensions (L x W x H) 22 x 80 x 3.5mm Weight 8g Interface SATA 6Gb/s Performance(Max) Up to 560/520MB/s Actual performance may vary due to available SSD capacity, system hardware and software, and other factors Operating temperature 0°C-70°C Storage temperature -40°C-85°C Shock resistance 1500G/0.5ms MTBF 2,000,000 hours *3 years warranty.
